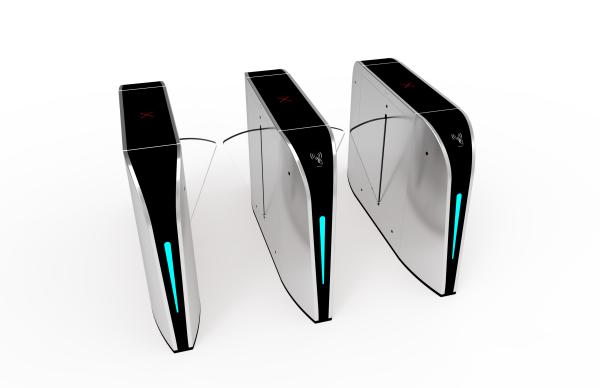

The flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired. These turnstiles provide a barrier to entry with a very pleasing and inviting appearance. The flap barrier turnstile is often used in office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building entrances.
FEATURES AND BENEFITS
• Could be used outdoor
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
| Structure parameters |
| Housing material | 304 brushed stainless steel |
| Thickness | cover1.2mm.body 1mm |
| Arm material | Acrylic |
| Surface | Laser cutting processing; precision welding |
| Technical parameters |
| Size | 1400*280*1000mm |
| Lane width | ≤550mm |
| Arm Length | 260mm |
| Passing speed | 35--50 people/min |
| Open/close speed | 0.1sec |
| Weight | 70KG |
| infrared sensors | 5 pairs |
| MCBF | 5 million times |
| Application | Indoor or outdoor |
| Rotating directional | Single way or Bi-directional adjustable |
| Noise | Smooth and slient operation |
| Operating temperature | -25 to 70℃ |
| Relative humidity | 5% to 95% |
| Package | Carton box inside. Wooden case outside |
| Electronic parameters |
| Power supply | 110-220V/AC, 50/60HZ |
| Rated power | 100W |
| Input signal | Dry contact |
| Driving motor | Brushless motor |
| Mainboard | Independent development patent mainboard |
